NSHTOU，NSHTOU-J，NSHTOEU-J卷筒用抗拉耐磨电缆，(N)SHTOU-J船用抓斗电缆，NSHTOU卷筒电缆，NSHTOU 10KV 3*25+3*16/3

适用于中等和高等机械应力的卷筒电缆

Suitable for reel cables with medium and high mechanical stress

(N)SHTOU  0.6/1KV，NSHTOU，NSHTOU-J，NSHTOEU-J，NSHTOU 10KV 3*25+3*16/3

NSHTOU，NSHTOU-J，NSHTOEU-J抗拉耐磨卷筒专用电缆应用/Application：

本产品广泛适用于升降机，电站龙门起吊系统，传输和传送带系统中，造船龙门起重机，升级系，卸船机，堆取料机，大型桥吊等工程机械的卷盘（卷筒）装置；无论是收线，放线或是电缆可被收放，或是通过滚轮牵引，适用于干燥或潮湿的室内或户外使用。

This product is widely used in elevators, power station gantry lifting systems, transmission and conveyor belt systems, shipbuilding gantry cranes, upgrade systems, ship unloaders, stackers and reclaimers, large bridge cranes and other construction machinery reel (reel) devices; The cable can be retracted, put out, or the cable can be retracted, or pulled by a roller, suitable for dry or humid indoor or outdoor use.

NSHTOU，NSHTOU-J，NSHTOEU-J抗拉耐磨卷筒专用电缆技术参数/Technical parameters :

额定电压: U0/U  0.6/1KV，6/10KV

绝缘电阻：≥10 GOhm x cm
测试电压 : 3000V
工作温度: -25°C to +80°C
弯曲半径: 7.5D（电缆直径）

阻燃性：符合IEC60332-1-2标准

耐油性：EN 60811-2-1标准

Rated voltage: U0/U 0.6/1KV

Insulation resistance: ≥10 GOhm x cm

Test voltage: 3000V

Working temperature: -25°C to +80°C

Bending radius: 7.5D (cable diameter)

Flame retardancy: in line with IEC60332-1-2 standard

Oil resistance: EN 60811-2-1 standard

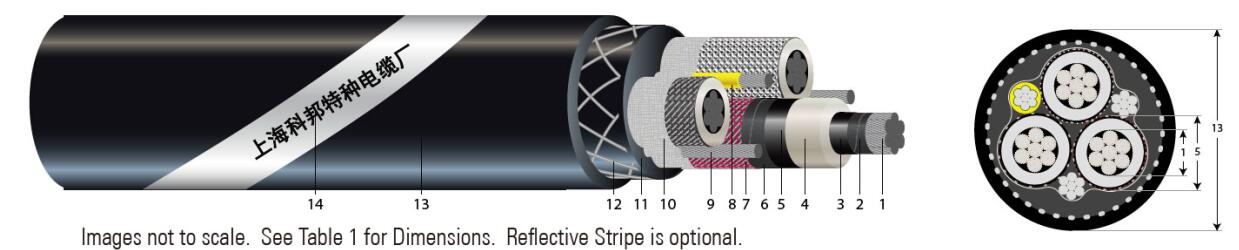

NSHTOU，NSHTOU-J，NSHTOEU-J，NSHTOU 10KV 3*25+3*16/3抗拉耐磨卷筒专用电缆结构/Cable structure :

导体：多股抗折弯柔性细铜丝绞合导体，符合CE 0812/IEC 60228第6类
绝缘：高机械性能绝缘3GI3型橡胶混合材物
加强层：护套内嵌凯夫拉丝聚酯纤维抗拉抗扭加强编织层

外护套：高分子耐候性5GM5型橡胶材物

Conductor: Multi-stranded flexible thin copper wire stranded conductor, in line with CE 0812/IEC 60228 category 6

Insulation: High mechanical performance insulation 3GI3 rubber compound material

Reinforcement: Kevlar polyester fiber tensile and torsion reinforced braid embedded in the sheath

Outer sheath: high polymer weather resistance 5GM5 rubber material

NSHTOU，NSHTOU-J，NSHTOEU-J抗拉耐磨卷筒专用电缆特性/Cable characteristics :

适用于户外使用

增强型外护套设计，抗机械应力优异
中央防撕裂承载加强芯，适用于高机械应力场合
耐寒，抗拉，耐磨，耐拖拽，耐油，耐卷绕，抗UV
中央承载加强芯可吸收张力，因此允许自由悬挂电缆在长距离的情况下收放线以及偏斜，电缆可被收放，或通过滚轮牵引，护套中内嵌了加强编织层，防止电缆发生不必要的扭曲，并形成所谓的螺旋形效应。

Suitable for outdoor use

Enhanced outer sheath design, excellent resistance to mechanical stress

Central tear-proof load-bearing reinforced core, suitable for high mechanical stress occasions

Cold resistance, tensile resistance, abrasion resistance, drag resistance, oil resistance, winding resistance, UV resistance

The central load-bearing reinforced core can absorb tension, so it allows the free suspension of the cable to be retracted and deviated in the case of a long distance. The cable can be retracted or pulled by a roller. A reinforced braid is embedded in the sheath to prevent the cable from happening. Unnecessary twisting and forming the so-called spiral effect.

注释/Remark：

1/更多规格请联系我们

2/X-不含黄绿接地保护芯线，G-含黄绿接地保护芯线

3/标准包装100m、200m、500m、1000m

1/Please contact us for more specifications

2/X- does not contain yellow-green grounding protection core wire, G- contains yellow-green grounding protection core wire

3/ Standard packaging 100m, 200m, 500m, 1000m
